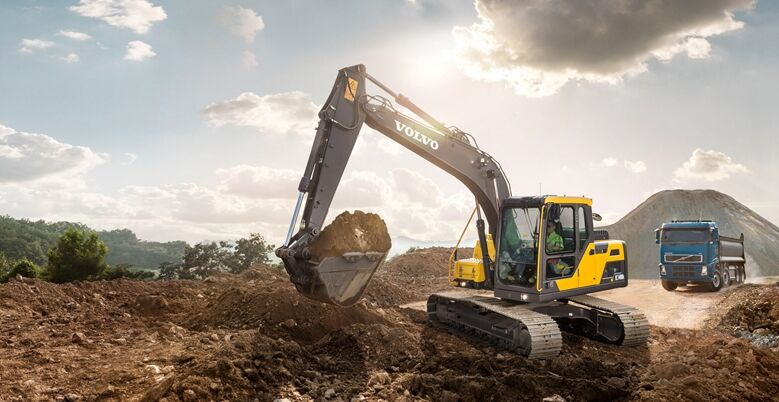

Crawler Excavator EC140D
-
Stage IIIA / Tier 3
Emission Standards -
12,920 - 15,870 kg
Operating weight -
77.4 kW
Gross power -
0.25 - 0.73 m³
Bucket capacity
Combining high fuel efficiency, uptime and productivity to become the ultimate earning machine
Features and benefits for EC140D
Do more and increase profit
Make more profit with the EC140D. This machine’s reliability and durability increases your uptime allowing you to keep working and earning. With outstanding fuel efficiency and power for excellent productivity, it allows you to work faster and get more done.
ECO mode
Work efficiently and profitably with Volvo’s intelligent ECO mode. This feature contributes to the machine’s total improved fuel efficiency –without any loss of performance. The design optimizes flow and pressure while maintaining digging power and swing torque. Choose the right work setting for the job at hand.
Durability
Deliver a strong performance shift after shift, day after day. Built with durable components, the robust superstructure, undercarriage and boom and arm, will help you to achieve the best results in all applications.
Reliability
Quality, long lasting components and the machine’s design increases uptime as well as profits. The EC140D has a robust structure and parts ensure it’s reliable on your job site so you can depend on your machine to perform and work hard.
Serviceability
The EC140D is built to ensure servicing is safe, quick and easy, featuring anti-slip plates, ground-level service access and centralized filters and greasing points. Long service intervals enhance machine availability and increase uptime for maximum productivity.
Outperform your competition
The EC120D/EC140D has outstanding power and controllability for a star performance. Superior digging power and machine stability results in faster cycle times and increased productivity.
Powerful Volvo engine
The engine boasts the best power and performance in its class, and its effective cooling capacity increases its longevity and performance.
Operator performance
Operate in a comfortable cab for a more productive working day. The EC140D has a premium cab is equipped with an easy-to-view monitor, spacious and safe operator environment, offering enhanced all-around visibility, an adjustable seat and ergonomic controls.
Efficient new work mode
For fast cycle times and optimum fuel consumption, the EC140D is equipped with intelligent work modes, including the new G4 work mode. Operators can choose the best mode to suit the task at hand, selecting from I (Idle), F (Fine), G (General), H (Heavy) and P (Power max) mode. Choose the correct mode according to your working conditions for added versatility and increased performance.
Machine stability
Improve your stability and work in more challenging environments with the machine’s long, wide undercarriage and heavy counterweight for a well-balanced and solid machine when operating in all terrains.
One machine for many jobs
Volvo offers a wide range of attachment combinations that are suitable for any job site. Volvo attachments are an integrated part of the excavator for which they are intended –delivering maximum productivity and versatility.
Quality Volvo buckets
Volvo’s General Purpose bucket is ideal for digging in low impact materials such as soft ground and comes with a standard GP tooth and lifting hook. The Volvo Heavy-Duty bucket is heavier and more robust with a rigid top structure and double wear shrouds on each side of the bucket. It is thicker for aggressive digging and bucket loading, and the RC tooth comes as standard.
Breakers
Volvo’s durable hydraulic breaker has been designed for ultimate compatibility with Volvo excavators and is built to break even the most demanding materials. With consistent power and high breaking force you’ll benefit from maximum impact and durability. Set your Volvo breaker at the right frequency to suit your application needs.
Attachment Management System
The password protected attachment management system allows storage for up to 20 different attachments. The system allows the operator to pre-set hydraulic flow inside the cab through the monitor, which ensures the use of various attachments for increased versatility.
Optional auxiliary piping
The Volvo-designed hydraulic breaker/shear piping and quick coupler piping option provides optimum flow to the hydraulic attachments. State-of-the-art auxiliary lines allow the correct flow and pressure for special attachments.
Adding value to your business
Being a Volvo customer means having a complete set of services at your fingertips. Volvo can offer you a long-term partnership, protect your revenue and provide a full range of customer solutions using high quality parts, delivered by passionate people. Volvo is committed to a positive return on your investment.
Complete solutions
Volvo has the right solution for you. So why not let us provide all your needs throughout the whole life cycle of your machine? By listening to your requirements, we can reduce your total cost of ownership and increase your revenue.
Genuine Volvo Parts
Our attention to detail is what makes us stand out. This proven concept acts as a solid investment in your machine’s future. Parts are extensively tested and approved because every part is vital for uptime and performance. Only by using Genuine Volvo Parts, can you be sure that your machine retains the renowned Volvo quality.
Service network
In order to respond to your needs faster, a Volvo expert is on their way to your job site from one of our Volvo facilities. With our extensive infrastructure of technicians, workshops and dealers, Volvo has a comprehensive network to fully support you using local knowledge and global experience.
CareTrack
CareTrack is the state-of-the-art Volvo telematics system that provides access to a wide range of machine monitoring information designed to save time and money. Proactively manage service and maintenance schedules, optimize machine and operator performance and reduce fuel costs with CareTrack.
Specifications for EC140D
| Operating weight | 12,920 - 15,870 kg |
|---|---|
| Gross power | 77.4 kW |
| Bucket capacity | 0.25 - 0.73 m³ |
| Lifting capacity, along undercarriage | 3,500 kg |
| ...at reach / height | 6 / 1.5 m |
| Max. digging reach | 8,330 mm |
| Max. digging depth | 5,530 mm |
| Breakout force, SAE J1179 (Normal) | 82.2 kN |
| Breakout force, SAE J1179 (Boost) | 87.2 kN |
| Tear out force, SAE J1179 (Normal) | 61.8 kN |
| Tear out force, SAE J1179 (Boost) | 65.5 kN |
| Overall width (extended) | 2,590 mm |
| Tail swing radius | 2,200 mm |
