Compact Wheel Loader L50H
-
Stage V / Tier 4f
Emission Standards -
1.6 m³
Bucket capacity -
9,500 kg
Operating weight -
87 kW
Engine gross power
ALL-ROUND INTELLIGENCE
Features and benefits for L50H

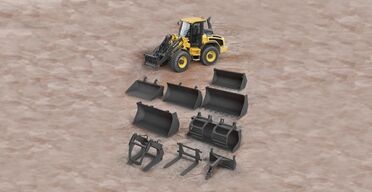

Get attached
Get flexible on site with original Volvo attachments. Volvo's wide range of durable attachments is designed as an integrated part of the loader for which they're intended. Their functions and properties perfectly match link-arm geometry to optimize breakout, rim pull and lifting force.
Solid, strong and stable
Volvo's L45H and L50H are compact and well balanced machines whose solid design gives you the strongest performance in the tightest jobsites. Quality is built into every inch of the machines.
Your control center
Step into Volvo's industry-leading cab; your customized control room. Create your perfect working environment by adjusting the seat and steering wheel to fit your needs, then select the easy-to-reach controls. Excellent all-round visibility gives you the best view of your efficient work.

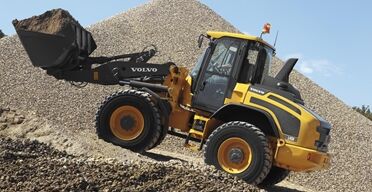

Tackle every terrain
Whether working on rough terrain or smooth concrete, Volvo's L45H and L50H loaders give you top performance. Quality is built into every inch of the machines, from the differential lock that transfers 100% power to all wheels, to the hydrostatic transmission which offers smooth speed increase. Conquer your site with Volvo.

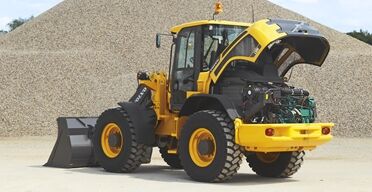

Compact your service time
Volvo's L45H and L50H are compact and well balanced machines whose solid design gives you the strongest performance on the tightest jobsites. Quality is built into every inch of the machines.
The best all-rounder
More than 60 years in the making, Volvo is proud to introduce the next generation L45H and L50H loaders. These versatile machines are a powerful asset on every jobsite in every application.
Specifications for L50H
| Engine | Volvo D4J |
|---|---|
| Engine gross power | 87 kW |
| Max torque ISO 9249, SAE J1349 net | 466 Nm |
| Bucket capacity | 1.6 m³ |
| Tipping load (ISO/DIS 14397-1) | 5,750 kg |
| ...at full turn | 40 ° |
| Breakout force | 69 kN |
| Hydraulic lifting capacity, max | 86 kN |
| Fork payload 80% | 3,840 kg |
| Operating weight | 9,500 kg |
| Maximum travel speed - Standard | 20 km/h |
