Crawler Excavator EC950E
-
Stage IIIA / Tier 3
Emission Standards -
89,960 - 91,840 kg
Operating weight -
3.9 - 6 m³
Bucket capacity
Tackle tough tasks with ease
Features and benefits for EC950E

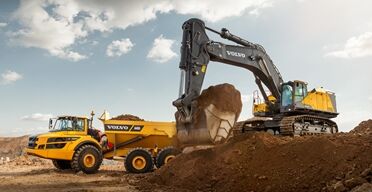

Big, powerful and productive
Do the bigger jobs better, stronger and faster with the EC950E. The 90 tonne crawler excavator offers the perfect combination of power and stability to handle a higher capacity in the toughest applications.

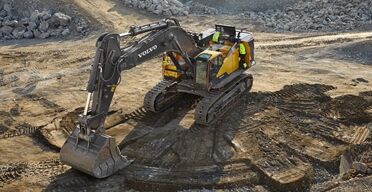

Always-on
Rely on maximum uptime with the big and durable EC950E – always available and ready to work. The machine’s heavy-duty design, reliable and wear-resistant components, and easy service access ensure you will get the job done quickly and without delay.
Proven reliability
Count on a solid, reliable EC950E with Volvo’s high-quality components, designed to work in perfect harmony with the machine. Volvo’s commitment to rigorous testing in its development process ensures the production of well-engineered components, purpose-built for the job, and proven to be reliable in the toughest applications.
Keeping costs down
We’re committed to providing a complete solution to guarantee the highest performance from your Volvo machine, including state-of-the-art support through our customer solutions. Take advantage of our unique, local dealer support network to ensure your machine achieves maximum uptime, and generates maximum profit and growth for your business.

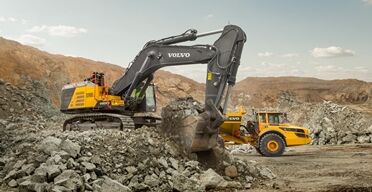

Peak performance
Job done. With the big and powerful EC950E, no task is too tough. Increase profitability with superior digging force, quick cycle times and outstanding fuel efficiency for a maximum return on investment.
Specifications for EC950E
| Operating weight | 89,960 - 91,840 kg |
|---|---|
| Bucket capacity | 3.9 - 6 m³ |
| Lifting capacity, along undercarriage | 37,460 kg |
| ...at reach / height | 6 / 1.5 m |
| Max. digging reach | 12,270 mm |
| Max. digging depth | 7,120 mm |
| Breakout force, SAE J1179 (Normal) | 424 kN |
| Tear out force, SAE J1179 (Normal) | 408 kN |
| Overall width | 4,515 mm |
| Tail swing radius | 4,700 mm |
