Compact Excavator EC15E
-
Stage V / Tier 4f
Emission Standards -
1,640 kg
Operating weight -
12 kW
Gross power -
0.01 - 0.05 m³
Bucket capacity
Light work of tough jobs
Features and benefits for EC15E
Compact by design
With a machine width less than 1m, combined with a reduced machine height to less than 2.35m, you can count on the EC15E to deliver superior performance when working in confined spaces. The machine design ensures maximum visibility and a reduced risk of machine damage when working alongside obstacles.
Small but tough
The unique high-profile counterweight design is made from three strong pieces of cast iron which wrap around the rear of the machine, protecting all vital components. All-round steel panels, recessed 10mm from the counterweight, offer further protection.
Transport with ease

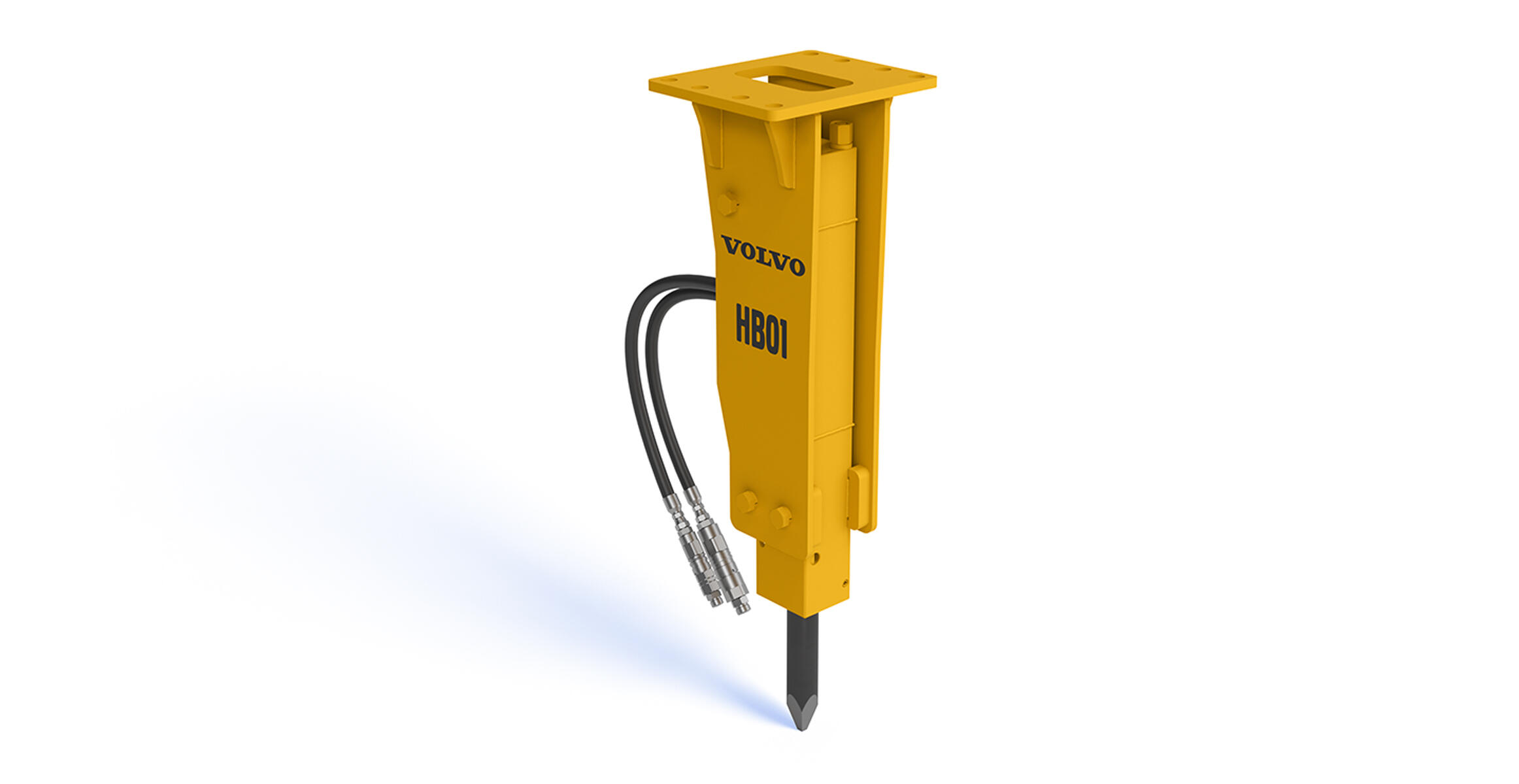

Transportation of the machine is safe and secure, thanks to its light weight and convenient design. With automatic slew lock and four easily accessed large tie-down points on the upper frame, the machine can be safely transported on a small trailer with up to three buckets and a hydraulic breaker, while maintaining a total transport weight of less than 2t.
Safe and easy operation
The roomy and uncluttered operator environment of the machine is designed to keep you safe and focused while at work, including simple layout of the controls, fingertip control and large travels pedals. Safety is built-in to the machine with a ROPS/TOPS/FOPS canopy, a large entrance including high visibility step, and an orange seatbelt as standard for easy checks by site managers.
Best-in-class serviceability
Complete maintenance tasks with speed thanks to the hinged fuel tank which enables an impressive ease of access to the engine compartment, and easy to locate daily check points. A 50-hour greasing interval further contributes towards the best-in-class serviceability of this machine.
Specifications for EC15E
| Engine | Volvo D0.9A |
|---|---|
| Gross power | 12 kW |
| Net power | 11.8 kW |
| ...at engine speed | 2,300 rpm |
| Operating weight | 1,640 kg |
| Operating weight, canopy version | 1,556 kg |
| Bucket capacity | 0.01 - 0.05 m³ |
| Travel speed, low / high | 1.9 km/h |
| Slewing speed | 9.5 rpm |
| Breakout force | 12.9 kN |
| Tear out force (arm breakout force) | 8 kN |
| Overall width | 995 mm |
| Overall length | 3,550 mm |
| Main hydraulic pump max. flow | 34 l/min |
