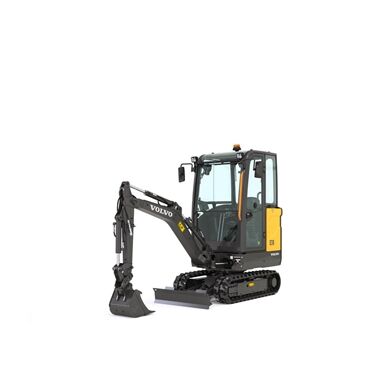

Electric Compact Excavator EC18 Electric

1,960 kg Operating weight
2,500 - 2,700 mm Maximum digging depth (short/long arm)

Building on the success of the ECR25 Electric and expanding on the proven technology of its diesel counterpart, the EC18 Electric offers customers a new option within the Volvo electric machinery line-up. Easy to operate and transport this is a machine designed for those looking for a cost-efficient... Read more

Download the EC18 Electric brochure, with all the details and specifications. (PDF, 689.2KB)

More specifications and competitor comparison

A proven past, an electric future

Technical specifications for EC18 Electric

Here are the key specifications for this product model. Want more details? Download the brochure or contact us.

Operating weight	1,960 kg
Maximum digging depth (short/long arm)	2,500 - 2,700 mm
Maximum dump height (short/long arm)	2,444 - 2,588 mm
Travel speed, low / high	1.9 / 3.8 km/h
Breakout force	12.9 kN
Tear out force (arm breakout force) (short/long arm)	7.95 - 6.95 kN
Overall width	995 - 1,352 mm
Overall length (short/long arm)	3,550 - 3,431 mm
Battery voltage	48 V
Battery capacity	20 kWh
Indicative runtime (depending on application)	Up to 6 hours
On board charging time 230 VAC 16A	~ 6 h
Off board charging time 400 VAC 32A	~ 1 h 15 m

More specifications and competitor comparison

Download the EC18 Electric brochure, with all the details and specifications. (PDF, 689.2KB)

Features & Benefits

Create new commercial opportunities for your business with the EC18 Electric, all while benefiting the environment and communities.

Work anytime, anywhere

The EC18 Electric boasts both low noise and zero-tailpipe emissions, creating new opportunities for your business. Operate in noise sensitive areas and out of standard hours, as well as on low-carbon projects and indoors, without the need for costly fume extraction systems or being restricted by operator time limits.

Whether working in the machine or on-site, all personnel benefit from the absence of exhaust fumes, industry leading low noise levels and the significant reduction in vibration and heat.

Create a better work environment

Operators will experience the world-class cab for which Volvo is renowned, including large entrance, superior visibility and comfort levels, further enhanced thanks to a dramatic reduction in noise, vibration and heat, and no exhaust fumes. This all contributes towards a quieter and cleaner jobsite, improving communication and working conditions for all personnel.

Operators will experience world-class levels of comfort in the fully enclosed and heated cab environment, as well as outstanding controllability and ease of operation.

Unrivalled operator experience

Everything you would expect from the world-class operator environment of its diesel counterpart can be found in the EC18 Electric, including heated cab, ergonomic and intuitive controls, unrivalled combination of movements as well as best in class stability. This is further enhanced by a number of features unique to the electric concept such as the low noise and vibration, more responsive hydraulics due to the immediate torque, and a range of customizable settings to adapt machine behavior according to the type of work and operator preference. Auxiliary hydraulic flows and joystick responsiveness are easily adjusted from the user-friendly interface.

Easy transport

Thanks to its optimized weight balance, automatic two speed travel and large hydraulic pedals, the EC18 Electric will smoothly load on to a trailer. With automatic slew lock and four easily accessed large tie-down points on the upper frame, the machine can be transported on a small trailer with up to three buckets and a hydraulic breaker, while maintaining a total transport weight close to 2t.

Work in confined spaces with total confidence thanks to the compact machine dimensions and all-around machine protection.

Small but tough

With a variable undercarriage that retracts to less than 1m and expands up to 1.35m, combined with a reduced machine height to less than 2.35m, you can count on the compact excavator to deliver superior performance when working in confined spaces. The machine design ensures that the right frame corner, swing post and cylinder stay within the tracks’ width, resulting in maximum visibility and a reduced risk of machine damage when working alongside obstacles.

Built with durability in mind

The unique high-profile counterweight design is made from three strong pieces of cast iron which wrap around the rear of the machine, protecting all vital components. All-round steel panels, recessed 10mm from the counterweight and hoses routed inside the boom offer further protection.

Featuring industry-leading battery technology, the EC18 Electric offers up to 6 hours of runtime and comes with a range of solutions to help manage the charging process more efficiently.

Make the most of every charge

The EC18 Electric can deliver up to 6 hours of work per charge depending on the environment, task at hand and choice of battery. For example, 4 hours 30 minutes of non-stop work could be expected when grading with a ditching bucket, and 2 hours when trenching. To find out if an electric Volvo machine is the right fit for your activities, just talk to your dealer, who can help you calculate operating time and the optimum charging solution based on your operation.

Industry-leading battery technology

The best machines deserve the best power solutions, which is precisely what you can expect in the EC18 Electric, equipped with a lithium-ion 48v  battery. Simply put, this is the best technology for the job with a capacity of 20 kWh. What’s more, the battery is designed to deliver up to 2000 full charge cycles, accounting for the full life expectancy of the machine.

Electric Machine Management Application: Your uptime partner

Remotely monitor the status of your Volvo EC18 Electric Compact excavator with our Electric Machine Management Application, providing insight into battery level, charging status, geographic location and more.

The EC18 Electric can be recharged in as little as 1 hours 15 minutes. Choose between multiple charging solutions depending on the requirements of your operation.

Choice of charging solutions

The Volvo EC18 Electric comes complete with integrated on-board charger which supplies a 3 kW power output to the batteries, allowing the machine to charge from 0% to 100% in as little as 6 hours. The machine comes with the necessary charging cable, plug and adapters to charge from a wall socket or wallbox. When projects and applications demand faster charging, a range of optional fast off-board chargers are available for both indoor and outdoor use. These will charge the machine from 0 to 80% in up to 1 hours 15 minutes.

Keep your Volvo a Volvo!

Only with Volvo attachments do you get what you wanted when you bought a Volvo in the first place – maximum productivity and uptime. Volvo develops and offers a wide range of attachments which brings you unmatched flexibility and versatility, making it easy for you to develop job opportunities and to get the job done with increased productivity. Displayed attachments may not be available in all markets. Consult your dealer for specific availability.
