Volvo SD45B drums up quality compaction

The SD45B soil compactor from Volvo Construction Equipment is the complete package, providing long-lasting performance and unmatched versatility to ensure a low total cost of ownership.

Volvo SD45B soil compactor

Introducing the new SD45B single drum compactor from Volvo Construction Equipment. Packed with technologically-advanced features, the Volvo SD45B adapts to the application and jobsite, helping the operator to achieve the next level of performance. The Volvo SD45B is designed for commercial and residential site development, utility installations, driveways and landscaping jobs. Providing up to 12 degrees of oscillation and 41 degrees of frame articulation in each direction, the SD45B offers the stability and versatility required to compact in confined areas. To optimize performance, the optional Volvo strike-off blade and padfoot shell kit further help to match the exact application and material type. The fully integrated traction system provides superior climbing capabilities, even on steep inclines or slippery surfaces. The system, combined with the NoSPIN® differential limits wheel or drum spin, improves productivity and safety.

Powerfully productive

In addition to ensuring versatile performance, the Volvo SD45B is also designed to drive down operating costs. The class-leading drum system enables the operator to achieve target density in fewer passes by combining a heavy drum weight, high amplitude (1.99 mm / 0.07 in) and high centrifugal force (93 kN / 21,132 lb). When the machine is returned to neutral, the vibration system automatically shuts off, preventing over-compaction and enhancing ease of operation.

The Volvo Tier 4 Final/Stage IV-compliant D3.3 engine delivers high torque at low engine speeds, providing high fuel efficiency without compromising power. When controls are inactive for more than five seconds, the automatic idle feature reduces the engine speed, further decreasing fuel consumption. During the work process, the passive regeneration cleans the filters automatically without any input from the operator or negative impact on performance.

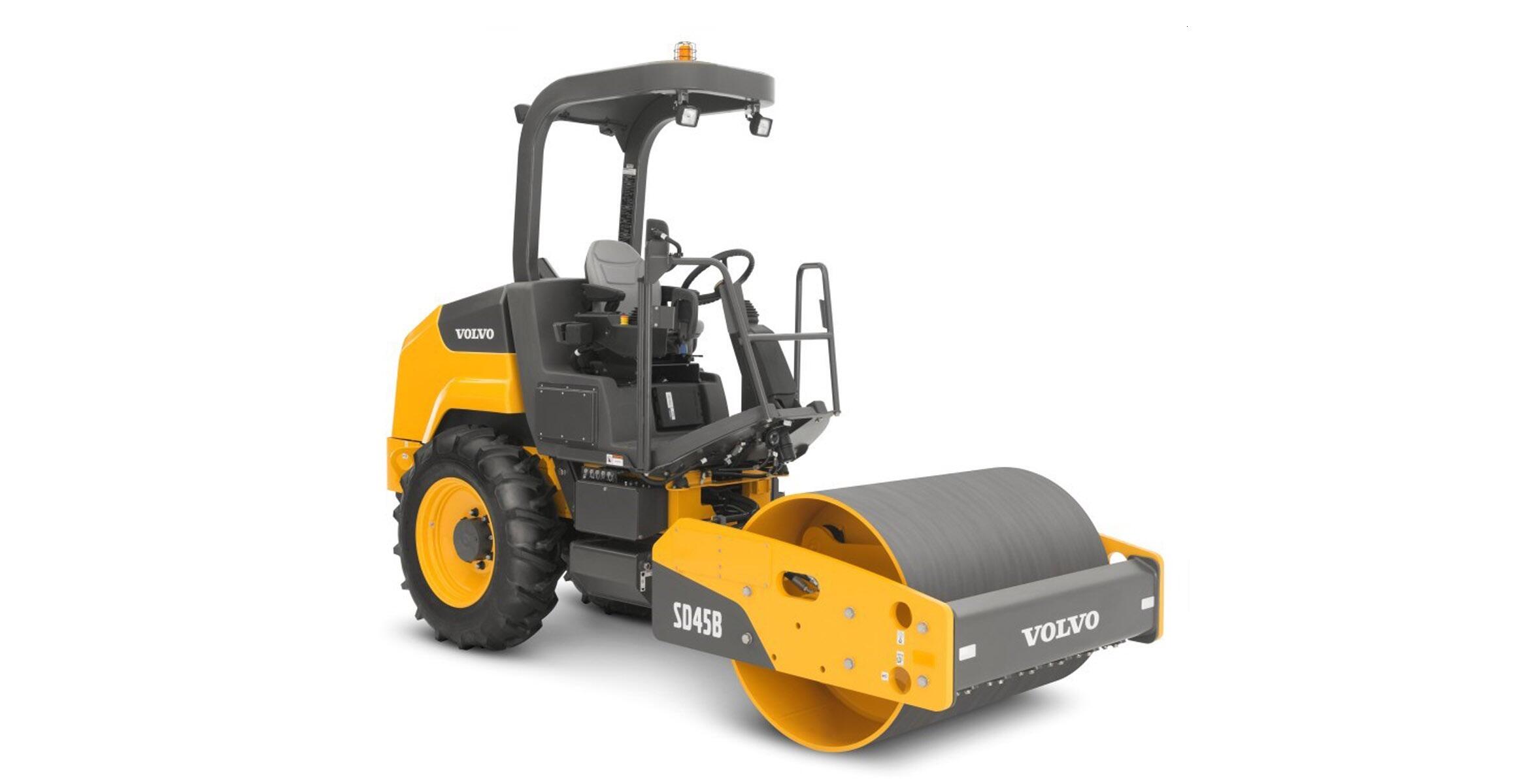

Volvo SD45B soil compactor - alternative image



Controlled compaction

Not only is the Volvo SD45B built to work hard, it also has operator safety and productivity at its core. The ROPS/FOPS certified canopy, for example, offers protection without restricting all-round visibility. To enhance comfort and ease of operation, all controls are ergonomically-positioned from the adjustable operator seat. Because the controls are of the same format found in Volvo’s larger single drum models, a greater pool of operators can intuitively control the SD45B.

Thanks to its compact size, the Volvo SD45B can be swiftly and safely moved around jobsites. The soil compactor can quickly be loaded onto a transport vehicle without removing components. For added efficiency, the two-piece, clamp-on padfoot shell kit can be installed or removed in less than an hour, and fits any SD45 single drum compactor.

Unmatched uptime

Efficient from the ground-up, the machine is designed for quick and safe serviceability, with minimal maintenance costs. As standard on B-Series models, the single drum compactor’s tiltable platform and hinged engine allow for simple access to all major hydraulic components and service points.

Volvo also offers a range of aftermarket services to avoid unscheduled downtime and better control costs. Solutions such as Genuine Volvo Parts, MATRIS diagnostic software and Customer Support Agreements help to ensure compactors maximize return on investment for their owners.

Key specifications:



Operating weight (with ROPS)

kg

4 948

lb

10,910

Operating weight (with ROPS, incl. cab & inside scraper)

kg

5 288

lb

11,660

Centrifugal force

kN

75/93

lbf

16,800/21,00

0

Vibration frequency

Hz

27.5/30.8

vpm

1,650/1,848

Gradeability

percentage

45

Rated engine power

kW

55

hp (imp)

74

Amplitude

mm

1.99

in

0.078

Drum width

mm

1 372

in

54

Articulation angle

angle

41

Oscillation angle

angle

12
