ECR355E

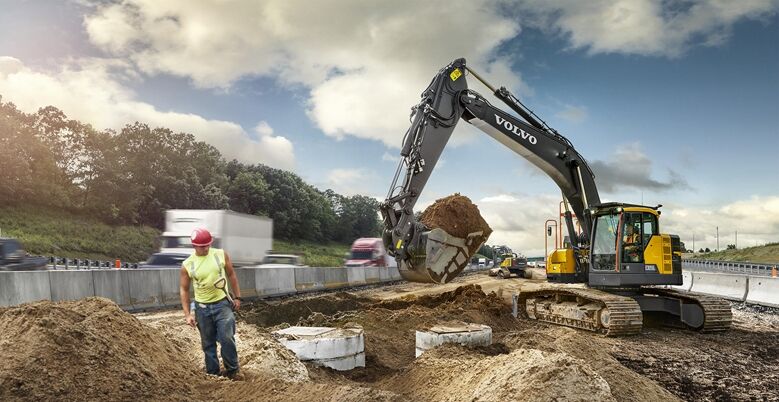

Crawler Excavator ECR355E
-
Stage IV / Tier 4f
Emission Standards -
75,200 - 83,800 lbs
Operating weight -
1.24 - 2.69 yd³
Bucket capacity
Rely on the ECR355E short swing radius, offering solid stability, greater lifting capacity and digging force, proven durability...
More
Achieve a lot with this short swing radius machine
Rely on the ECR355E short swing radius, offering solid stability, greater lifting capacity and digging force, proven durability and greater controllability. Access tight job sites thanks to the long list of standard features, cleverly-designed to ensure efficient operations and long-lasting performance.
Features and benefits for ECR355E
Explore what sets the ECR355E apart
Short swing, solid stability
Operate with complete confidence with the ECR355E. The heavy-duty, short swing machine provides unshakable stability, enabling you to gain the most from the power. The solid design features precisely positioned components for optimal balance, as well as an optional dozer blade that can be used to level the excavator when working on uneven ground and for faster clean-ups.
ECR355E
Never short on performance
Proving that you don’t need to make compromises, the new ECR355E short swing radius excavator from Volvo is designed for working in confined areas – while delivering digging performance, fast cycle times, balance and stability that rival conventional excavators. Get to work without delay in the robust machine, powered by the fuel-efficient Tier 4 Final certificated Volvo engine and do more for less.
The right mode for the job
Keep performance high and costs low with the integrated Volvo work mode system. Choose the best work mode for the task at hand – select from I (Idle), F (Fine) and G (General), H (Heavy). The new ECO mode uses the latest electronic pump control technology to further boost fuel efficiency without any loss in performance.
Power to perform
Power your operation with the fuel-efficient Tier 4 Final certificated Volvo engine, combining high torque and low RPM for superior, longlasting performance. Based on proven, advanced technology and decades of experience, the robust D8 engine delivers 241 Hp (180kW) of power, while reducing both fuel consumption and emissions.
Get to work – fast
Cut cycle times to a minimum and increase profitability with the E-Series electro-hydraulic system. Working in combination with the Volvo engine, the advanced system increases pump power for faster and smoother operation, all while providing greater control, superior digging performance and unbeatable productivity.
Do more for less
Increase fuel efficiency by up to 10% with the ECR355E, designed to help you do more for less. The efficient Tier 4 Final certificated Volvo engine and superior hydraulic performance at lower engine RPM result in improved fuel efficiency without any loss of performance in most operating conditions. Cut cycle times thanks to the boom float function, which saves pump power when lowering the boom.
Lift more, dig more
Dig, swing and load more than before with the ECR355E, powered by advanced electro-hydraulic technology. Offering a significant increase in both lifting capacity and digging force this machine is ideal for pipelaying, trench-box installation and utility work. With the ECR355E, hard work has never been so easy.
ECR355E
Short swing, big potential
No task is too tough for the robust and versatile ECR355E. The short swing radius machine is a proven partner to increase productivity on tight job sites. Combining superior digging performance, greater lifting capacity, ease of mobility and a precise finish in grading applications, the ECR355E is a compact machine that packs a powerful punch.
Adapt to any application
From road construction to heavy infrastructure work, the ECR355E’s class-leading short swing radius goes where conventional machines cannot. Add the Volvo dozer blade, quick coupler and auxiliary hydraulics or the optional two-piece boom, and the result is greater versatility and productivity. Adapt to any application with the ECR355E without compromising on reach, lifting or digging performance.
Productivity services
Improve and maintain site productivity with a host of smart solutions offered by Productivity Services. Operator behavior, site setup and machine configuration are just some of the many factors within Productivity Services that can be refined to boost productivity. Choose from various machine options, Assist solutions and training packages to enhance the performance of your Volvo fleet – so you can do more and earn more.
Go anywhere ability
Go everywhere in the ECR355E, designed to deliver maximum mobility, performance and power for its size. Thanks to its compact design, the machine is ideal for working in confined spaces and can easily be transported from site to site.
Making the grade
Experience smooth operation, fast response times and high performance with the ECR355E, featuring increased hydraulic flow for accurate control in grading and combined operations. Benefit from easier movement when traveling and lifting simultaneously, and better grading quality thanks to the synchronized boom and arm movement. Designed to complement each other, the enhancements also contribute to low fuel consumption.
Up to the test
Built on the established E-Series platform, the ECR355E features all the proven Volvo technology you’d expect from a short swing radius excavator, plus a host of upgrades. Durable by design, the ECR355E has undergone extensive testing to ensure the highest standard of productivity and machine uptime.
ECR355E
Take on the tough stuff
Always available and ready to work, the ECR355E knocks big jobs down to size. This robust machine delivers ultimate uptime across a variety of applications – no matter how demanding – thanks to its sturdy design, reliable and wear-resistant components, reinforced undercarriage and easy service access.
Durable by design
Achieve non-stop production with the durable and reliable ECR355E. Built with robust components, including a strong X-frame undercarriage featuring forged steel top rollers, and Volvo’s rugged boom and arms, the machine can be relied on for longevity and sustained uptime.
Uptime services
Reduce repair costs and unplanned downtime with Uptime Services, designed to help keep your machine and business up and running. Utilizing innovative technology, Volvo dealers remotely monitor your machine. Any problems can be diagnosed early and corrective steps taken towards a sustainable solution. Stay on track with the latest software, planned servicing, flexible maintenance and repair options.
Simple serviceability
Maximize uptime with quick and safe ground-level servicing. Essential maintenance points – including pump pressure taps, filters and the cooling package – are easily accessed via the wideopening compartment doors, which can be latched at 90°. And, with logically-grouped greasing manifolds, anti-slip plates and plentiful handrails, you can get back to work swiftly and safely.
Heavy-duty options
For demolition and other heavy-duty applications, Volvo offers reinforcement and guarding packages to ensure your Volvo machine is well-protected. Unlock the potential of your ECR355E’s uptime with a range of options, including the boom and bucket cylinder guards, heavy-duty side doors, reinforced belly-plates, slew ring protection and frame and cab-mounted Falling Object Guarding (FOG) packages.
Take control
Take control of your machine with a host of new features. The customized response modes in the joysticks and the positive control hydraulic system deliver equal measures power and precision, the machine does exactly what the operator intends to optimize productivity and performance. The hydraulic system is matched to the Volvo D8 engine, further enhancing the power and controllability of the excavator.
ECR355E
Do more – comfortably
Get comfortable with doing more in the Volvo ECR355E. The new E-Series is designed to maneuver in and out of confined areas, yet remains spacious and comfortable. The low-noise cab increases efficiencies and reduces operator fatigue thanks to a number of features, including the automatic climate control system. Do more with Volvo – because a comfortable operator is a more productive operator.
Comfortably productive
Comfort is key. The industry-leading ROPS certified Volvo cab’s expansive window area offers unparalleled visibility. The adjustable seat, ample legroom and vibration dampeners deliver superior comfort and productivity. With ergonomic controls and simplified switches integrated into the keypad, the Human Machine Interface (HMI) brings the operator and technology together, forming one cohesive working environment.
Every angle in view
From the Volvo cab, experience all-around visibility around the machine and surrounding job site thanks to narrow pillars and large windows. The ergonomically designed cab also features a large vertical windshield for greater visibility, safety and convenience – the large upper front window can be be easily rolled up and out of the way, while the lower portion can be easily removed and stowed inside the cab.
Volvo smart view
Enhance performance and safety with Volvo Smart View. The optional feature combines four exterior-mounted cameras to create a bird’s eye view of the machine, displayed via the on-board monitor. With Volvo Smart View, you can observe all surrounding areas, which is particularly valuable in confined spaces where an extra pair of eyes informs you of the machine’s position in relation to the job at all times.
Keep cool
Stay fresh, alert and focused with the E-Series climate control system. The industry-leading air circulation and defrosting system speeds up the heating and cooling of the cab for a more comfortable environment. Easily adjust the system from the 8” LCD monitor.
Mix and match
Get the most out of your machine with Volvo attachments. Choose from a selection of purpose-built attachments, including the hydraulic breakers, general-purpose buckets, heavy-duty buckets and hydraulic thumbs. Or, utilize the attachment management system with optional pressure settings to install a number of aftermarket work tools to give your machine unrestricted access to more applications.
ECR355E
More than a machine
Complete a variety of tasks with the versatile ECR355E, designed to work in harmony with integrated attachments from Volvo. With Volvo’s quick couplers and attachment management system, you can easily switch between buckets, hydraulic breakers, and even the Steelwrist® tilt rotator. Maximize cycle times and productivity with the Volvo short swing radius excavator – more than just a machine.
Steelwrist®
Volvo’s tilt rotator can be ordered factory-installed with dedicated joysticks and a color display that is fully integrated into the machine’s system. The new series of Volvo Aggressive Cut excavator buckets are perfectly matched to the factory-installed tilt rotator.
Locked on
Volvo offers a full range of quick couplers, which includes Volvo’s S-type, universal and Steelwrist® quick coupler. Offering smooth transitions and quick attachment changes, Volvo’s quick couplers make changing attachments quick and easy – all from the comfort and safety of the cab.
Auxiliary piping
To achieve the correct flow and pressure for hydraulic attachments such as mowers, grinders, shears, crushers and tilt rotators, the machine can be factory fitted with a wide variety of auxiliary hydraulic lines.
Get set and go
The password protected attachment management system allows storage for up to 20 different attachments. The userfriendly system allows the operator to pre-set the correct hydraulic flow and pressure inside the cab through the monitor, to get the most performance from attachments.
Specifications for ECR355E
Explore key specifications and download the brochure for more detailed information.
| Operating weight | 75,200 - 83,800 lbs |
|---|---|
| Bucket capacity | 1.24 - 2.69 yd³ |
| Lifting capacity, along undercarriage | 27,490 lbs |
| ...at reach / height | 20 / 5 ft |
| Max. digging reach | 35′ 3″ ft in |
| Max. digging depth | 22' 4" ft in |
| Breakout force, SAE J1179 (Normal) | 37,090 lbf |
| Breakout force, SAE J1179 (Boost) | 40,240 lbf |
| Tear out force, SAE J1179 (Normal) | 29,900 lbf |
| Tear out force, SAE J1179 (Boost) | 32,370 lbf |
| Tail swing radius | 6′ 3″ ft in |
Image illustration only. Production machines may differ in appearance and features vary between markets and models.
