Demolition excavator EC380E Straight Boom
-
Stage V / Tier 4f
Emission Standards -
100,610 lbs
Operating weight -
307 hp
Engine gross power -
10,582 lbs
Max. allowable tool weight
Made for demolition
Features and benefits for EC380E Straight Boom

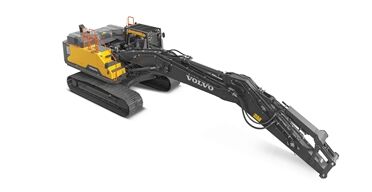

Specialist work equipment
When you order a 7-meter, 23’ straight boom you can be confident it comes ready to work. Features include LED lights, X1 and X3 auxiliary piping, quick fit and oil drain line and water lines for the dust suppression system.
Dust suppression system
Four nozzles fitted on the arm create a fine mist which encapsulates the dust, powered by a 30 liters per minute, 0.132 gallons per minute hydraulic pump. Operators can select between Auto or Manual mode – with water only sprayed when the attachment is operating when in Auto mode. The system can also be used for cleaning the machine, with a high-pressure water gun mounted behind the cab.
High visibility, protected cab
The already industry renowned comfort of the Volvo Care Cab is further enhanced to bolster safety and visibility. Features include Frame-mounted Falling Object Guards, ISO 12117-2:2008 compliant Roll-Over Protective Structure, and P5A grade single-piece front and roof window, which meets EN356 standards. The wide opening front guard for easy cleaning, and standard washer and wiper on the front and roof windows, further add to a safe, comfortable and convenient operator experience.

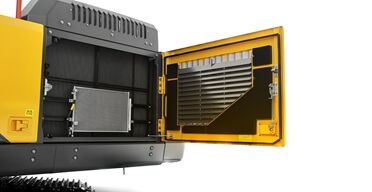

Durable by design
Experience the ultimate in protection from damage and debris. Features including boom and bucket cylinder protection, full track guard, heavy-duty undercover and belly cover, Side Impact Protection Structure, reversible cooling fan and much more, help to secure uptime and long-term performance.
Removable counterweight
While at work the counterweight provides outstanding stability, and when on the move, the counterweight is hydraulically removable allowing for easy transportation.
Specifications for EC380E Straight Boom
| Operating weight | 100,610 lbs |
|---|---|
| Engine gross power | 307 hp |
| …at engine speed | 1,700 rpm |
| Max. allowable tool weight | 10,582 lbs |
| Max. pin height | 39′ 10″ ft in |
| Max. pin reach | 35′ 6″ ft in |
| ...Fixed undercarriage - Extended | 108 in |
