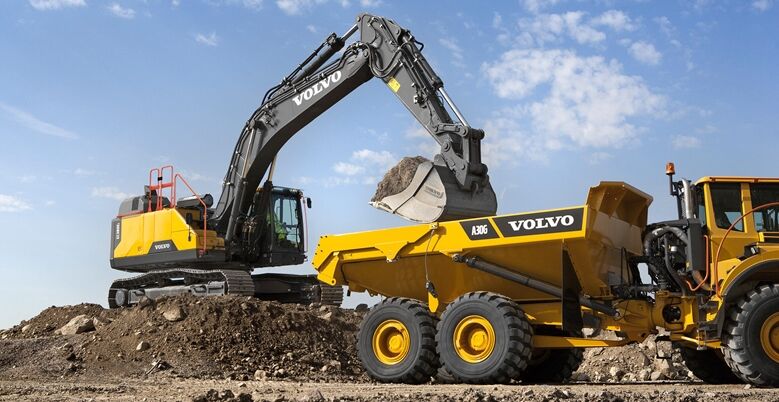

EC380E Hybrid
Crawler Excavator EC380E Hybrid
-
Stage IV / Tier 4f
Emission Standards -
83,330 - 94,800 lbs
Operating weight -
1.09 - 3.7 yd³
Bucket capacity
Introducing the EC380E Hybrid. Featuring unique hydraulic hybrid Volvo technology, the excavator utilizes the boom down motion to...
More
Simple solution, big savings

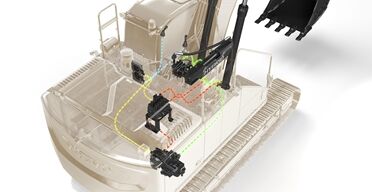

Introducing the EC380E Hybrid. Featuring unique hydraulic hybrid Volvo technology, the excavator utilizes the boom down motion to charge the accumulator, with the stored energy used to drive the assist motor which powers the engine system. The result is up to 12% increase in fuel efficiency while delivering all the power and performance you would expect from a conventional EC380E.
Features and benefits for EC380E Hybrid
Explore what sets the EC380E Hybrid apart

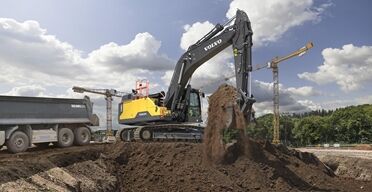

Simply reliable
The uncomplicated and reliable hybrid solution consists of just a handful of add-on components and is easy to maintain, meaning no disruption or complication to how the high performing EC380E is engineered.
EC380E Hybrid
Simply reliable
The uncomplicated and reliable hybrid solution consists of just a handful of add-on components and is easy to maintain, meaning no disruption or complication to how the high performing EC380E is engineered.
Cleaner and greener
The EC380E Hybrid reduces CO₂ emissions by up to 15% making it a more environmentally respectful choice, especially when working in built-up areas.
EC380E Hybrid
Cleaner and greener
The EC380E Hybrid reduces CO₂ emissions by up to 15% making it a more environmentally respectful choice, especially when working in built-up areas.
Rapid payback
When working in dig and dump applications, the EC380E Hybrid is a straightforward solution with fast payback. Save fuel, lower emissions and boost the profitability of your operation.
EC380E Hybrid
Rapid payback
When working in dig and dump applications, the EC380E Hybrid is a straightforward solution with fast payback. Save fuel, lower emissions and boost the profitability of your operation.
Comfortable operation
All machine interfaces are ergonomically positioned and designed for optimum control and efficiency.
EC380E Hybrid
Boost your productivity
It's a fact that operators work more efficiently when they're given the best tools for the job. That's why the EC380E Hybrid has an ergonomic design with ideally placed controls and switches. With built in comfort and optimized control, operators will work efficiently and productively all day long.
Keypad
The optimally positioned keypad allows the operator to easily navigate through the LCD monitor and activate machine functions in a safe and comfortable way. The functionality of the camera, air conditioning and lights can be customized via the hot key – enabling the operator to select and save desired configurations.
LCD monitor
The color, eight inch LCD monitor displays machine status information including fuel consumption data and service interval alerts – enabling increased uptime and high productivity. The user-friendly design is easy to read in any light conditions.
Shortcut switch
The windshield wipers, camera, audio mute or power max function can be assigned to a shortcut switch located on the joystick. This allows the operator to easily control the selected function by simply pressing a switch.
Seatbelt warning alarm
If the seatbelt is not fastened when the ignition key is turned, a sensor triggers an alarm which sounds for three seconds.
Volvo engine
Volvo's D13 Tier 4 Final engine boasts more power while reducing both fuel consumption and emissions and delivering superior quality, reliability and durability.
EC380E Hybrid
Non-stop productivity
Experienced and skilled Volvo engineers have developed and rigorously tested Tier 4F engine systems that deliver the ultimate combination of high productivity and low fuel consumption. Benefit from Volvo's signature high torque at low rpm and experience superior performance and reduced fuel consumption.
Diesel-driven heater
The optional diesel-driven coolant heater helps to start the engine in low temperatures while simultaneously heating the cab. The heater can be set in advance to engage at a specific date and time.
Volvo aftertreatment system
During the fully automatic regeneration process, particulate matter in the Diesel Particulate Filter is oxidized at low exhaust temperatures via passive regeneration. Volvo uses Selective Catalytic Reduction technology where Diesel Exhaust Fluid is heated to produce ammonia. This causes a chemical reaction which converts NOx to nitrogen and CO2 – both of which are naturally found in the air. Neither process interrupts machine operation, performance or productivity.
Cooling fan
The hydraulically-driven, electronically controlled cooling fan regulates the temperature of the vital components. It automatically activates only when needed – reducing fuel consumption and noise. The optional reversible functionality – which blows air in the opposite direction – enables self-cleaning of the cooling units.
Reinforced undercarriage
The undercarriage components are reinforced to ensure long life, high uptime and ultimate durability in tough conditions.
EC380E Hybrid
Built to last
From quarries to mass excavation, this heavy-duty production machine has been built to work on tough job sites. Featuring a robust, reinforced structure and high quality welding, the EC380E boasts superior strength and durability. Experience reliability you can count on with Volvo.
Superstructure undercover
The heavy-duty superstructure undercover plates increase durability by providing additional protection to the underside of the machine in tough applications – preventing damage from rock and debris.
Doors and hinges
Volvo's durable design features a rigid side door with a robust handle and hinges for superior durability
Robust design
The reinforced idler frame, track links and bottom rollers are built to withstand tough conditions for improved durability and reliability in demanding applications.
Single module cooler
The radiator, charged air cooler and hydraulic oil cooler are situated side-byside on a single layer to maximize efficiency, reduce blockages and aid cleaning.
EC380E Hybrid
Up your uptime
At Volvo we believe that maintaining your machine should be as quick and easy as possible. That's why our designers and engineers have developed innovative methods to make maintenance easy. With large, wide opening compartment doors and grouped service points, checks will be carried out faster and you'll get the most out of every operating shift.
Service access
Grouped filters are quick and easy to access from ground level. To facilitate fast servicing, grouped greasing points are easily accessed with the machine in one position.
Anti-slip plates
Punched anti-slip plates provide superior grip and increased safety. The design facilitates easy cleaning
Handrails
A large storage compartment provides a safe and convenient location for items including a toolbox and grease can.
Handrails
Handrails and full size guardrails provide safe and easy access to the cab and superstructure.
Specifications for EC380E Hybrid
Explore key specifications and download the brochure for more detailed information.
| Operating weight | 83,330 - 94,800 lbs |
|---|---|
| Bucket capacity | 1.09 - 3.7 yd³ |
| Lifting capacity, along undercarriage | 33,797 lbs |
| ...at reach / height | 20 / 5 ft |
| Max. digging reach | 36′ 10″ ft in |
| Max. digging depth | 24' 10" ft in |
| Breakout force, SAE J1179 (Normal) | 44,512 lbf |
| Breakout force, SAE J1179 (Boost) | 48,334 lbf |
| Tear out force, SAE J1179 (Normal) | 36,395 lbf |
| Tear out force, SAE J1179 (Boost) | 39,770 lbf |
| Overall width | 11′ 7″ ft in |
| Tail swing radius | 11′ 10″ ft in |
Image illustration only. Production machines may differ in appearance and features vary between markets and models.
Attachments for EC380E Hybrid
Only with Volvo attachments do you get what you wanted when you bought a Volvo in the first place – maximum productivity and uptime. Volvo develops and offers a wide range of attachments which brings you unmatched flexibility and versatility, making it easy for you to develop job opportunities and to get the job done with increased productivity.
