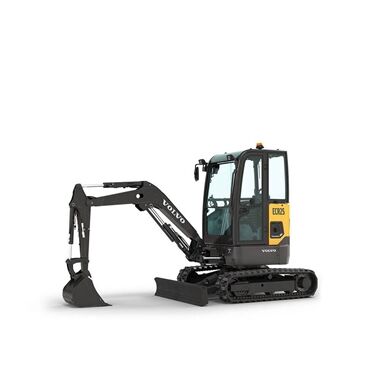

The Volvo ECR25 Electric excavator is a true game changer. The first in a new range of electric compact excavators, it takes a proven concept – and... Read more
ReserveRequest Machine Information Download the ECR25 Electric brochure, with all the details and specifications. (PDF, 643.1KB) More specifications and competitor comparisonThe Volvo ECR25 Electric excavator is a true game changer. The first in a new range of electric compact excavators, it takes a proven concept – and then adds battery electric power, so you’ll have all the performance you need, in the compact package you demand. Volvo CE is moving towards a brighter, more sustainable future, and now you can too.
| Operating weight | 5,908 - 6,129 lbs |
|---|---|
| Maximum digging depth (short/long arm) | 8′ 9″ - 9′ 9″ ft in |
| Maximum dump height (short/long arm) | 9′ 2″ - 9′ 8″ ft in |
| Travel speed, low / high | 1.49 / 2.8 mph |
| Breakout force | 5,013 lbf |
| Tear out force (arm breakout force) (short/long arm) | 2652 - 3365 lbf |
| Overall width | 5′ 1″ - 0″ ft in |
| Overall length (short/long arm) | 13′ 2″ - 12′ 9″ ft in |
| Main hydraulic pump max. flow | 15.3 gal/min |
| Electric motor (peak) | 24 hp |
| Battery voltage | 48 V |
| Battery capacity | 20 kWh |
| Indicative runtime (depending on application) | Up to 4 hours |
| On board charging time 230 VAC 16A | ~ 5 h |
| Off board charging time 400 VAC 32A | ~ 50 min for 80% charge |
| Sound pressure level (LpA) at operator's position | 74 dB |
| Sound power level (LWA) around the machine | 84 dB |
Images for illustration purposes only. Production machines may differ in appearance and features; they may vary between markets and models. Specifications may change without prior notice. No warranty is provided until the machine has been purchased.
Only with Volvo attachments do you get what you wanted when you bought a Volvo in the first place – maximum productivity and uptime. Volvo develops and offers a wide range of attachments which brings you unmatched flexibility and versatility, making it easy for you to develop job opportunities and to get the job done with increased productivity. Displayed attachments may not be available in all markets. Consult your dealer for specific availability.
