Electric compact excavator EC55 Electric
-
5,800 kg
Operating weight -
4,000 mm
Max. digging depth -
0.2 m³
Bucket capacity -
67 kWh
Battery capacity
A Cleaner Choice, A Smart Investment
Features and benefits for EC55 Electric

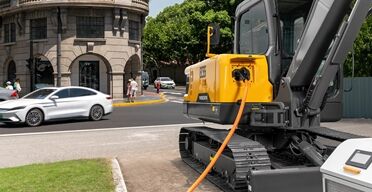

50% Reduction in energy costs
What’s more, the electric motor is around 99% efficient and no energy is used when the machine is not moving and working, saving on energy consumption and wear.

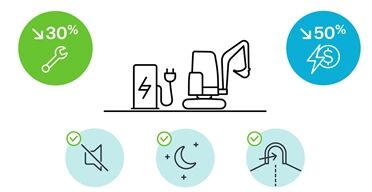

30% Less maintenance
The maintenance-free battery is also designed to last the full life expectancy of the machine and is fully recyclable.

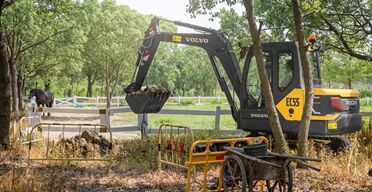

New business horizons
Noise sensitive areas, indoors, low carbon zones, unsociable hours – these are all places an electric machine can work, where a diesel alternative cannot.

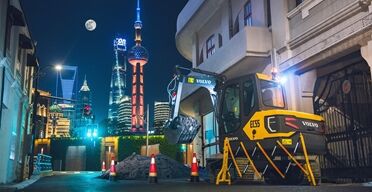

Building a more sustainable world
Operators will experience a new level of comfort due to the significant reduction in noise, vibration and heat, as well as the complete absence of exhaust fumes. The immediate torque also results in more responsive hydraulics for further operator comfort and productivity. What’s more, a low noise jobsite supports clear and easy communication for improved teamwork, collaboration and safety on site.

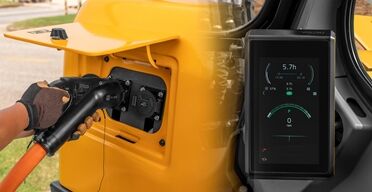

Plug and play charging solutions
Volvo Electric machines come with an on-board charger and the necessary charging cable, plug and adapters to charge from a wall socket or wallbox. A range of fast off-board chargers are available for both indoor and outdoor use, and provide the ability to fully charge the machine during a lunch break. To help you make the right decisions for your operation, we can help you calculate operating time and the optimum charging solution based on your requirements.
Easy machine monitoring
Manage your fleet more efficiently and maximize productivity via real time tracking, full machine running status, geo/time fence management, machine utilization reports and maintenance alerts and messages – all accessed through PULSE or the Volvo Construction Equipment app. With Volvo ActiveCare you can leave it to Volvo to keep track of your machines – our Volvo Uptime Center will provide 24/7 machine monitoring, supplying weekly reports and notifying you should preventive maintenance action be required.
Specifications for EC55 Electric
| Operating weight | 5,800 kg |
|---|---|
| Bucket capacity | 0.2 m³ |
| Max. dump height | 4,090 mm |
| Travel speed, low / high | 2.6 / 4.3 km/h |
| Breakout force | 40 kN |
| Tear out force (arm breakout force) | 29 kN |
| Overall width | 1,920 mm |
| Overall length (short/long arm) | 5,885 mm |
| Main hydraulic pump max. flow | 144 l/min |
| Electric motor (peak) | 42 kW |
| Battery voltage | 400 V |
| Battery capacity | 67 kWh |
| Indicative runtime (depending on application) | Up to 4-6 |
| Connector Type | GB/T |
| Sound pressure level (LpA) at operator's position | 75 dB |
| Sound power level (LWA) around the machine | 92 dB |
