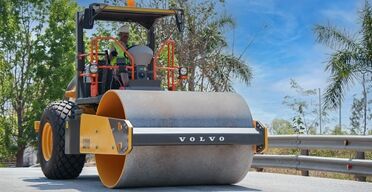

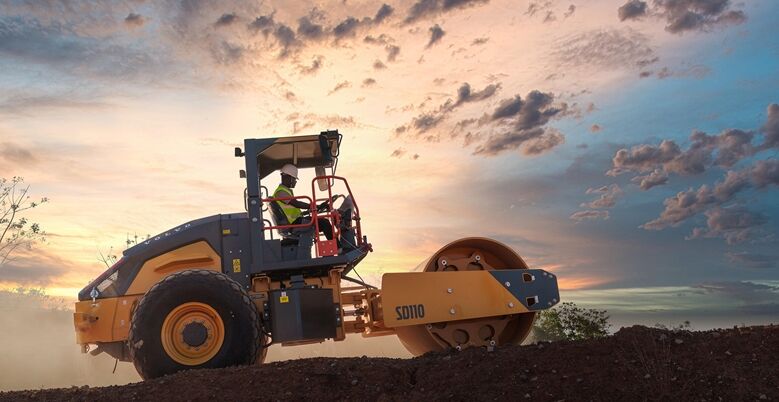

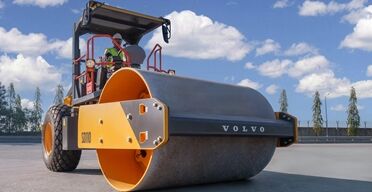

Soil Compactor SD110
-
Stage V / Tier 4f
Emission Standards -
11,150 kg
Operating weight (with ROPS) -
74 kW
Rated engine power
Compact your costs
Features and benefits for SD110
Do more in less time
Get ready for the next level in compaction performance with the SD110. IT offers the flexibility to adapt to any application. Optimized for productivity, the SD110 is designed to deliver maximum success and profitability to your projects.
Adapt to the job
Boost productivity in the versatile SD110, ready to take on a variety of projects and applications. Variable frequency range from 0 to 30hz enables to adapt to different types of soil, along with high/low amplitude for different material bed thickness.
Agile stability
The well-balanced and stable machine maintains confident contact between the drum and tires and the material surface. Highly maneuverable with +/- 40° of articulation and +/- 17° of oscillation, the result is fast and effective compaction, even on uneven terrain.

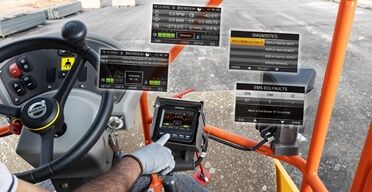

Take control
Purpose-built for the Indian market and featuring a VECV engine, the SD110 delivers outstanding levels of performance and efficiency, while also meeting the latest emissions standards. Packed with features to support a comfortable and productive operation, this machine is the perfect choice for customers looking to reduce both their environmental impact and operating costs.
Comfortable operation
Achieve maximum results with a range of comfort enhancing features including adjustable/sliding seat, two armrests, footrest and generous amounts of space. The controls are easy to reach and include a propulsion control lever with integrated vibration switch for enhanced precision and control. A heavy-duty steel sunshade protects operators against the elements and in the unlikely event of a machine roll-over. The top half of the sunshade can be easily removed for transportation.
Ultimate efficiency
Delivering the ultimate in fuel efficiency and controllability, the highly responsive SD110 features an optimized hydraulic system designed to work in harmony with the new VECV engine. Fuel efficiency is boosted further by the vibration system which helps to quickly achieve optimum density.
Powered to perform
The fuel efficient and reliable VECV engine helps to secure the highest levels of performance and a low cost of operation. Both the engine and machine can be serviced by your Volvo dealer, providing a one-stop-shop maintenance solution for further convenience and reduced downtime.
Made in india, for india
Based on decades of experience supplying high performing machines to the Indian market, the SD110 has been designed specifically for compaction applications in India.
Adding value to your business
With the highest levels of Volvo quality built into every component, the SD110 is a reliable and durable machine designed to work harder for longer, helping you achieve maximum return on your investment. Machine quality and ease of servicing are complemented by an extensive range of dealer support tools and Volvo Services to keep your machine working at its best.
Round the clock support
Get your machine back to work without delay with 24/7 access to the Volvo dealer support network. Simply call the support number, which will automatically direct you to your local dealership, where a dedicated team will take care of your individual needs.
Retain volvo quality
Only by using Genuine Volvo Parts can you be sure that your machine retains its renowned Volvo quality. Every part is vital for uptime and Genuine Volvo Parts are extensively tested and approved to provide the same levels of component quality as the day you bought your machine.
Plan for success
Including preventive maintenance and total repairs, with a Customer Support Agreement you are in control of your service costs. Customer Support Agreements are part of an extensive portfolio of Volvo Services designed to help you get the maximum return on your Volvo machine from purchase to disposal.
Specifications for SD110
| Operating weight (with ROPS) | 11,150 kg |
|---|---|
| Centrifugal force | 130/243 kN |
| Vibration frequency | 30 hz |
| Gradeability | 26 % |
| Rated engine power | 74 kW |
| Amplitude | 1/1.9 mm |
| Drum width | 2,134 mm |
| Articulation angle | +/-40 degree |
| Oscillation angle | +/-17 degree |
