Asphalt Compactor PTR240
-
Stage IV / Tier 4f
Emission Standards -
52,910 lbs
Operating weight (with ROPS, fully ballasted) -
100 hp
Rated engine power -
78.2 in
Drum or rolling width
High-performance compaction
Features and benefits for PTR240
Ballast versatility

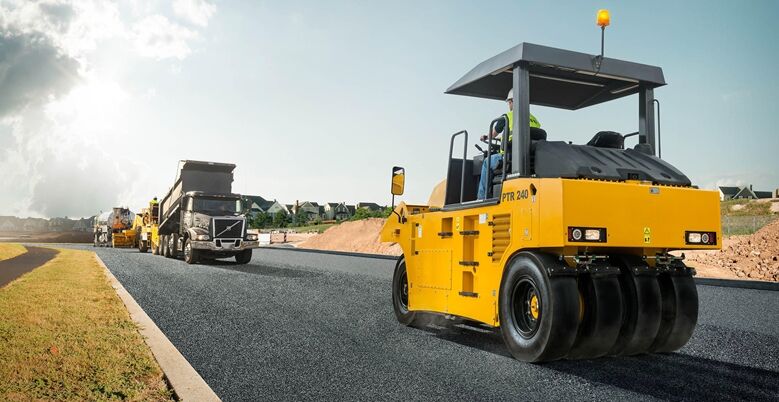

Experience high-performance compaction in all terrain with the PTR240. Designed for roadway construction and resurfacing applications, the eight-wheeled pneumatic tire roller utilizes kneading action for the compaction of hot and warm mix asphalt. For chip seal applications, the pneumatic tires press the aggregate into the binder without fracturing. Enjoy ease of operation and high efficiency thanks to the PTR240, built to finish the job on time and under budget.
POWERFULLY EFFICIENT
A fuel-efficient Tier 4 Final engine with a 3-speed Powershift™ transmission delivers ample power reserve for difficult applications and high rolling speeds - up to 19km/h (12mph).
Pressure makes perfect
The central tire inflation system enables the operator to dial in the exact pressure needed to maximize the tire contact area with various material surfaces from the comfort of the operator station
Productivity on tap
The pressurized, rust-proof water system features an adjustable flowrate and individual spray bars that cover all tires on both the front and rear axles to minimize the risk of material pickup with cold tires. The water system features triple filtration to provide long pump life and consistent water flow to use the generous 103 gallon tank capacity when you need it.
Specifications for PTR240
| Operating weight without ballast | 21,385 lbs |
|---|---|
| Operating weight (with ROPS, fully ballasted) | 52,910 lbs |
| Drum or rolling width | 78.2 in |
| Rated engine power | 100 hp |
| Overall length | 16′ 6″ in |
| Overall width | 6′ 10″ in |
| Overall height | 123.2 in |
