New

Soil Compactors SD45

Tier 4f / Stage IV Emission Standards
11,660 lbs Operating weight (with Cab & inside scraper)
10,910 lbs Operating weight (with ROPS)
74 hp Rated engine power

Do more with the SD45 single drum soil compactor from Volvo, designed to propel the profitability of your business and maximize return on your investment. Combining versatility with ease of maintenance, the compactor delivers unmatched performance and optimum machine uptime across a variety of... Read more

Download the SD45 brochure, with all the details and specifications. (PDF, 486KB)

Quality compaction in action

Technical specifications for SD45

Here are the key specifications for this product model. Want more details? Download the brochure or contact us.

Operating weight (with ROPS)	10,910 lbs
Operating weight (with Cab & inside scraper)	11,660 lbs
Centrifugal force	16,800/21,000 lbf
Vibration frequency	1,650/1,848 v/min
Gradeability	45 %
Rated engine power	74 hp
Amplitude	0.078 in
Drum width	54 in
Articulation angle	41 °
Oscillation angle	12 °

Image illustration only. Production machines may differ in appearance and features vary between markets and models.

Download the SD45 brochure, with all the details and specifications. (PDF, 486KB)

Features & Benefits

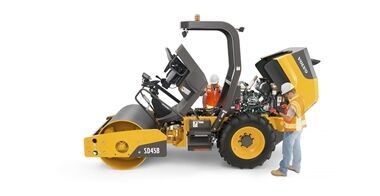

Optimize service efficiency with the hinged engine hood and tilt able operator’s platform for swift ground-level access.

Drive costs down

The Volvo SD45 single drum compactor is designed to increase uptime. Thanks to ground-level service access and easy transportability, you can get back to work in no time. Take advantage of our dealer support network to ensure your compactor generates maximum profit and growth for your business.

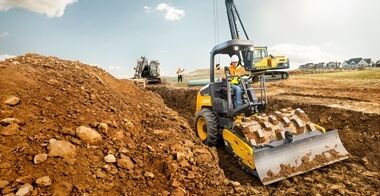

Whether operating in confined spaces or across difficult terrain, the SD45 provides solid stability and versatility.

The all-rounder

Maximize return on your investment with the Volvo SD45 single drum compactor, designed to boost profitability and ensure low total cost of ownership. The powerful single drum compactor is the complete package, providing superior compaction performance and unrivaled versatility. Designed to compact in confined areas, the SD45 is the best partner for commercial and residential site development, utility installations, driveways and landscaping jobs.
