Asphalt Compactors PTR240

Tier 4f / Stage IV Emission Standards
52,910 lbs Operating Weight
100 hp Rated engine power
78.2 in Drum or rolling width

Download the PTR240 brochure, with all the details and specifications. (PDF, 3.4MB)

More specifications and competitor comparison

High-performance compaction

Experience high-performance compaction on any terrain type with the PTR240 distributed by Volvo Construction Equipment. Designed for roadway construction, resurfacing applications, and even sub-base compaction, the eight-wheeled pneumatic tire roller utilized kneading action to compact hot and warm mix asphalt. For ship seal applications, the pneumatic tires press the aggregate into the binder with fracturing. Enjoy ease of operation and high efficiency thanks to the PTR240, built to finish the job on time and under budget.

Technical specifications for PTR240

Here are the key specifications for this product model. Want more details? Download the brochure or contact us.

Operating weight without ballast	21,385 lbs
Operating weight (with ROPS, fully ballasted)	52,910 lbs
Drum or rolling width	78.2 in
Rated engine power	100 hp
Overall length	16′ 6″ in
Overall width	6′ 10″ in
Overall height	123.2 in

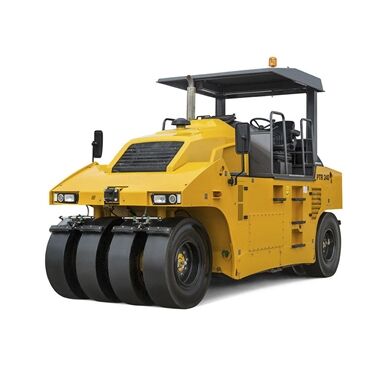

Image illustration only. Production machines may differ in appearance and features vary between markets and models.

More specifications and competitor comparison

Download the PTR240 brochure, with all the details and specifications. (PDF, 3.4MB)

Features & Benefits

The maximum operating weight can be adjusted from 9 to 24 tonnes with sealed compartments using water, sand, or steel ballast.

Ballast versatility

Experience high-performance compaction in all terrain with the PTR240. Designed for roadway construction and resurfacing applications, the eight-wheeled pneumatic tire roller utilizes kneading action for the compaction of hot and warm mix asphalt. For chip seal applications, the pneumatic tires press the aggregate into the binder without fracturing. Enjoy ease of operation and high efficiency thanks to the PTR240, built to finish the job on time and under budget.

A fuel-efficient Tier 4 Final engine with a 3-speed Powershift™ transmission delivers ample power reserve for difficult applications and high rolling speeds - up to 19km/h (12mph).

POWERFULLY EFFICIENT

A fuel-efficient Tier 4 Final engine with a 3-speed Powershift™ transmission delivers ample power reserve for difficult applications and high rolling speeds - up to 19km/h (12mph).

The central tire inflation system enables the operator to dial in the exact pressure needed to maximize the tire contact area with various material surfaces from the comfort of the operator station.

Pressure makes perfect

The central tire inflation system enables the operator to dial in the exact pressure needed to maximize the tire contact area with various material surfaces from the comfort of the operator station

The pressurized, rust-proof water system features an adjustable flowrate and individual spray bars that cover all tires on both the front and rear axles to minimize the risk of material pickup with cold tires. The water system features triple filtration to provide long pump life and consistent water flow to use the generous 103 gallon tank capacity when you need it.
