Crawler Excavator EC130
-
Stage IIIA / Tier 3
Emission Standards -
12,800 kg
Operating weight -
73 kW
Gross power -
0.52 m³
Bucket capacity
Fuel efficient and powerful performance
Features and benefits for EC130

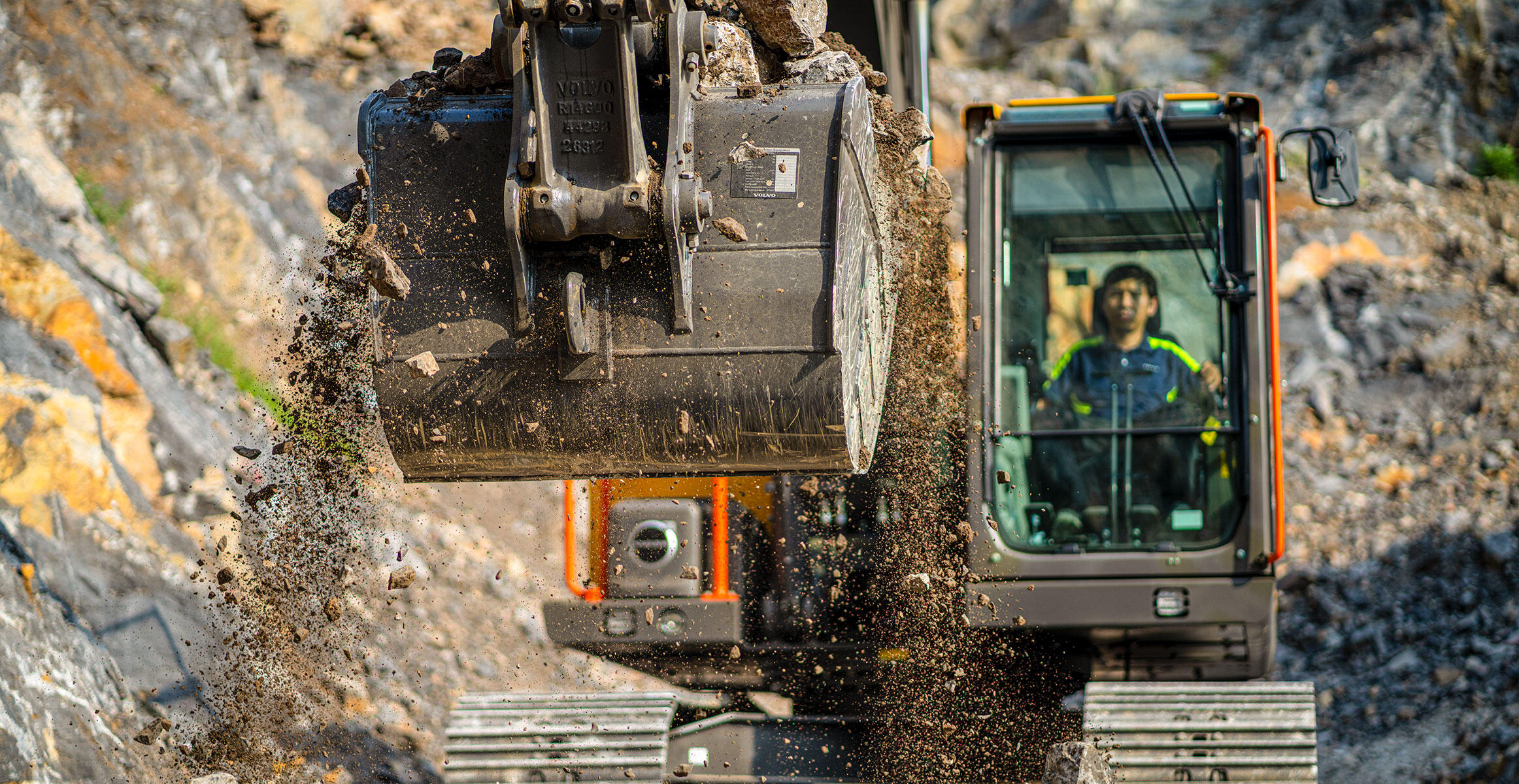

Outstanding fuel efficiency
Experience high controllability and fast response times with the proven Volvo positive control hydraulics. The hydraulics system and Main Control Valve use intelligent technology to control on-demand flow for high productivity, high-digging capacity and excellent fuel efficiency.
Engine pump optimization
Engine speed is reduced to as low as 2000rpm thanks to engine-pump optimization, lowering fuel consumption while maintaining excellent machine performance. The pump is also larger compared to the previous generation, further contributing to improved fuel efficiency. The system controls the hydraulic pump flow rate and pressure based on the load and speed requirements. The result is improved fuel efficiency, reduced maintenance costs and lower operating costs.
Efficient work modes
With 10 unique work modes, count on the EC130 for optimum fuel efficiency, machine versatility and fast cycle times. Operators can select the best mode to suit both the application at hand and on-site working conditions.
Fuel efficient technology
The EC130 is packed with intelligent technology designed to make every drop of fuel count. Features including automatic engine shutdown and auto idling combine with the powerful and efficient Volvo engine to deliver unrivalled levels of fuel efficiency.

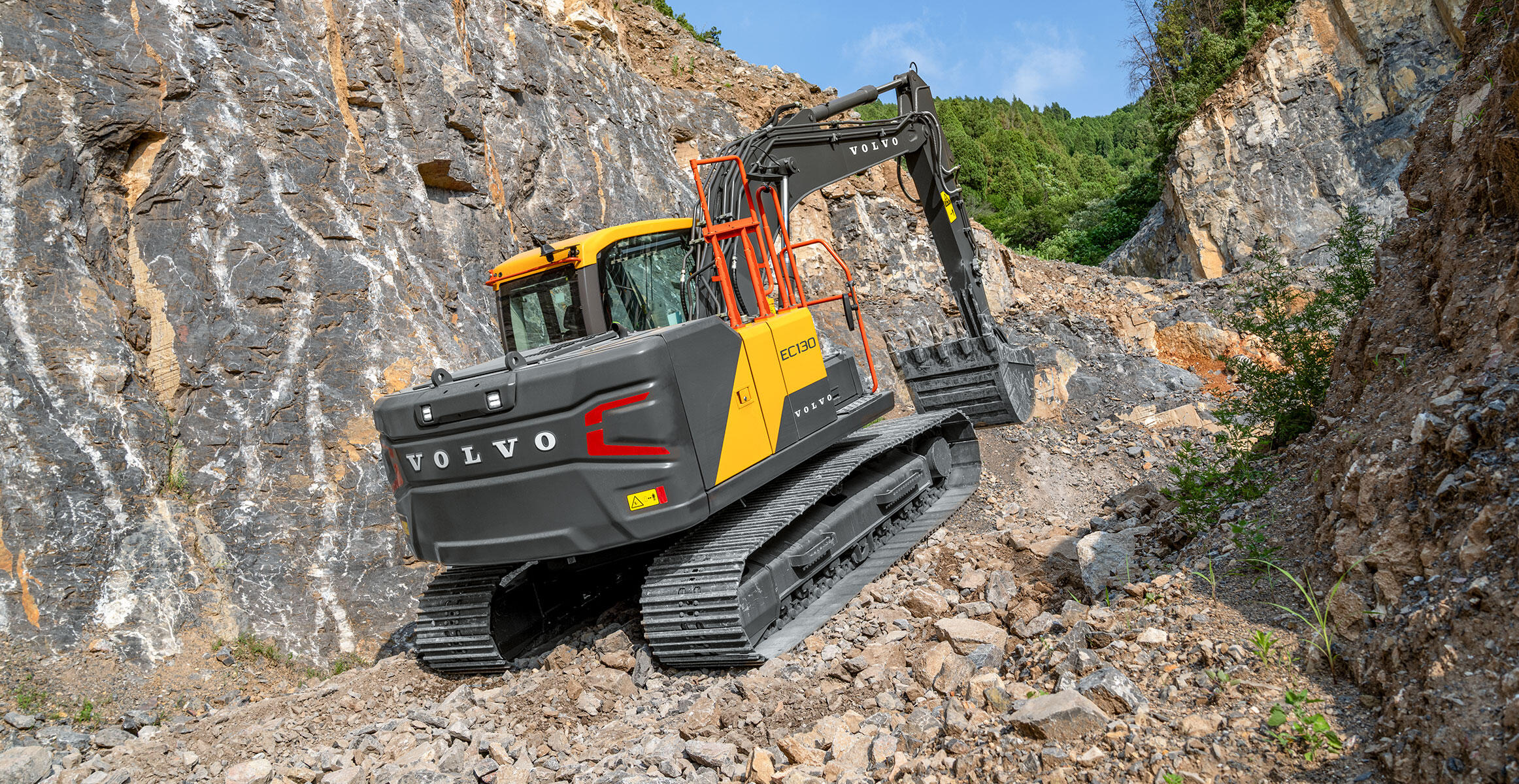

Powerful performance
Robust, powerful and versatile – find out how the EC130 delivers outstanding productivity across a range of applications.
Versatility
Easily preset and adjust hydraulic flow from the in-cab monitor using the password-protected attachment management system, with storage for up to 20 attachments, helping you achieve maximum results across a range of applications. Select one- or two-pump flow to maximize productivity and profitability. Featuring X1 constant flow, the EC130 includes a convenient X1 constant flow pre-setting function.

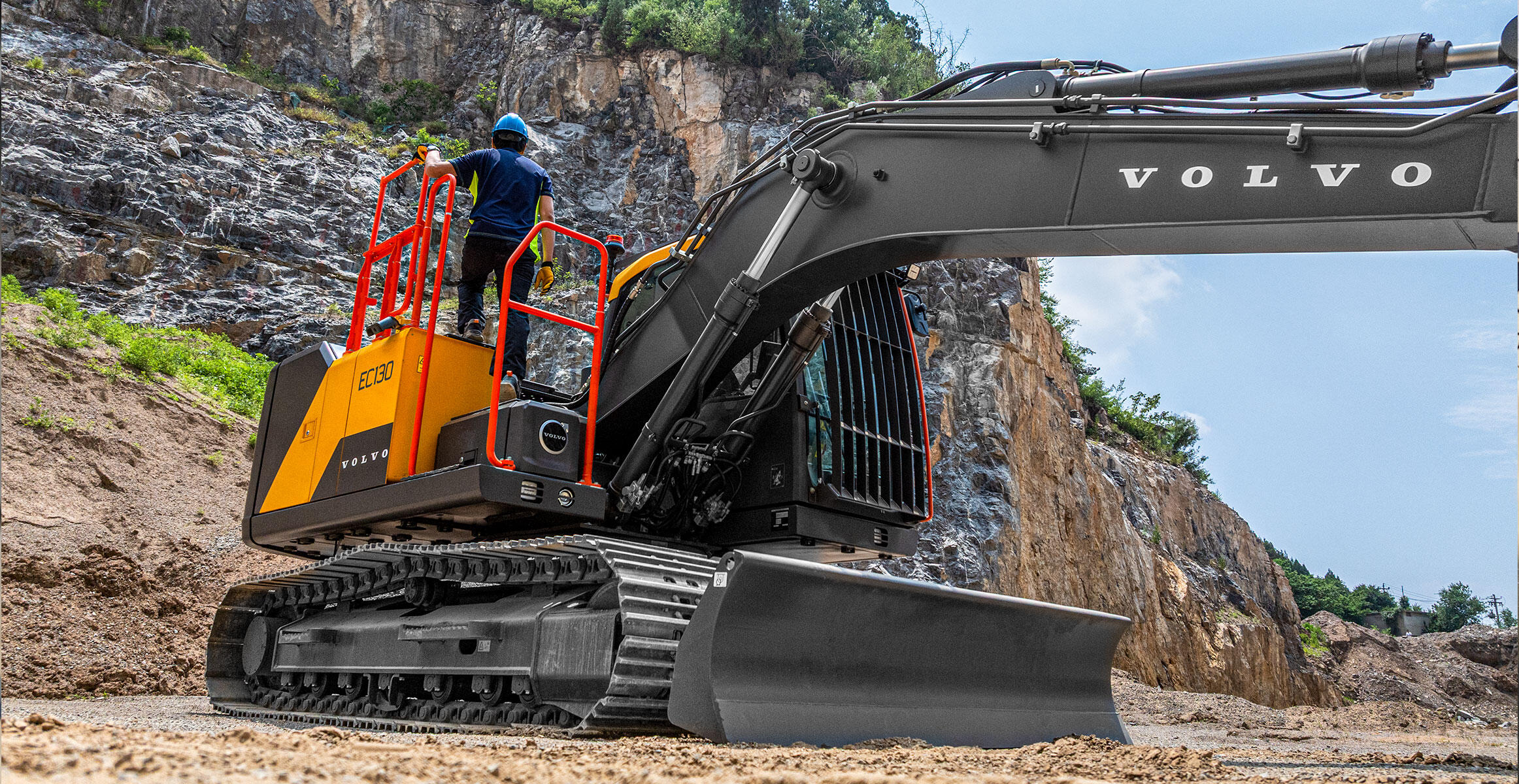

Maximum uptime, maximum earning potential
When it comes to routine maintenance, servicing is quick and easy, with features such as grouped filters, ground level service access, quick drain port, swing out aircon condenser and centralized lubrication points. The upper structure can be accessed with safety and confidence thanks to anti-slip plates and bright 3-point right-hand side access rails.
Long service intervals
Long service intervals allow you to work for longer between scheduled maintenance stops. Engine oil/filter and fuel filters need changing every 500 hours, the swing gearbox oil and service filter hydraulic oil every 1,000 hours and hydraulic oil return filter every 2,000 hours.
Durable by design
Built to perform in demanding conditions, the EC130 combines a high-quality build with durable components to reduce wear, minimize downtime and ensure dependable performance day after day. Examples include the robust hydraulic hoses which minimize leakage, and high efficiency air filter for enhanced engine protection.
Specifications for EC130
| Operating weight | 12,800 kg |
|---|---|
| Gross power | 73 kW |
| ...at engine speed | 2,200 rpm |
| Bucket capacity | 0.52 m³ |
| Lifting capacity, along undercarriage | 4,600 kg |
| ...at reach / height | 4.5/1.5 m |
| Max. digging reach | 8,330 mm |
| Max. digging depth | 5,530 mm |
| Breakout force, ISO 6015 (Normal) | 88 kN |
| Tear out force, ISO 6015 (Normal) | 60 kN |
| Overall width | 2,500 mm |
| Tail swing radius | 2,200 mm |
